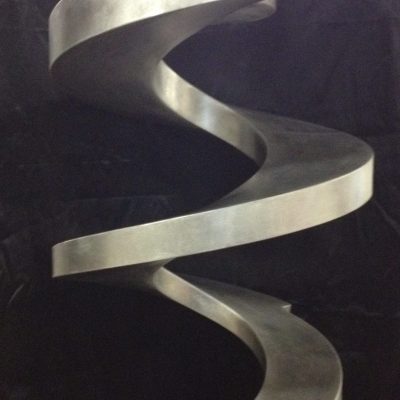

Spiral Chutes | Gravity Chutes
Spiral chutes, also known as spiral let-down chutes or gravity chutes, provide an efficient method for transferring bulk materials and packaged products between elevations while minimizing product degradation, dust generation, and maintenance requirements. Utilizing gravity as the conveying force, spiral chutes offer a reliable, energy-efficient alternative to mechanical conveying systems for vertical product handling.
At Astro Metal Craft, every spiral chute is custom engineered to match the specific flow characteristics of the material being conveyed. Factors such as product density, particle size, shape, throughput, drop height, and desired discharge velocity are carefully evaluated to ensure consistent performance and gentle product handling.
How Spiral Chutes Work

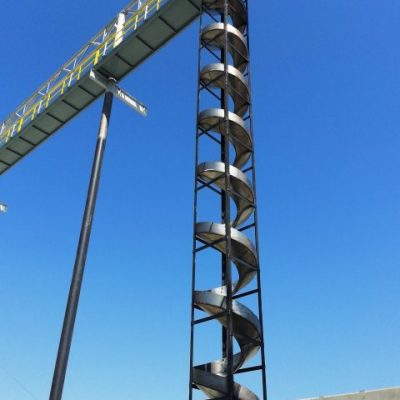

Material enters the chute at an upper elevation and follows a controlled spiral path downward. The spiral design slows the product’s descent, reducing impact forces that can cause breakage, dusting, or segregation. This controlled movement allows products to transition between processing stages, conveyors, storage bins, or packaging systems while maintaining product integrity.
Unlike powered conveying equipment, spiral chutes contain no moving parts, resulting in minimal maintenance requirements, reduced operating costs, and high system reliability.
Design Considerations
Each spiral chute is designed around the specific application and material characteristics, including:
- Material density and flowability
- Product size, shape, and fragility
- Required throughput (volume or pounds per hour)
- Vertical drop distance
- Infeed and discharge configurations
- Available floor space and structural support requirements
- Dust control and containment requirements
- Integration with existing equipment
Optional features may include inlet and discharge chutes, slide gates, transition hoppers, holding tanks, support structures, access platforms, and custom mounting systems.
Applications
Spiral chutes are widely used in industries that require gentle, controlled handling of bulk materials and finished products, including:
- Food processing
- Agriculture and grain handling
- Fertilizer production
- Biofuels and biomass processing
- Chemical manufacturing
- Wood products and pulp processing
- Parcel and package handling
- Airport baggage systems

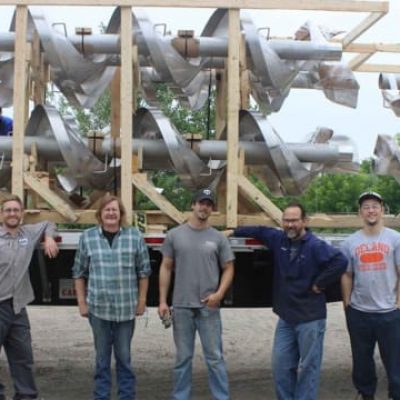

Common products conveyed include coffee beans, nuts, seeds, cereals, snack foods, crackers, cookies, pasta, pet food, frozen foods, fertilizers, and other free-flowing materials.

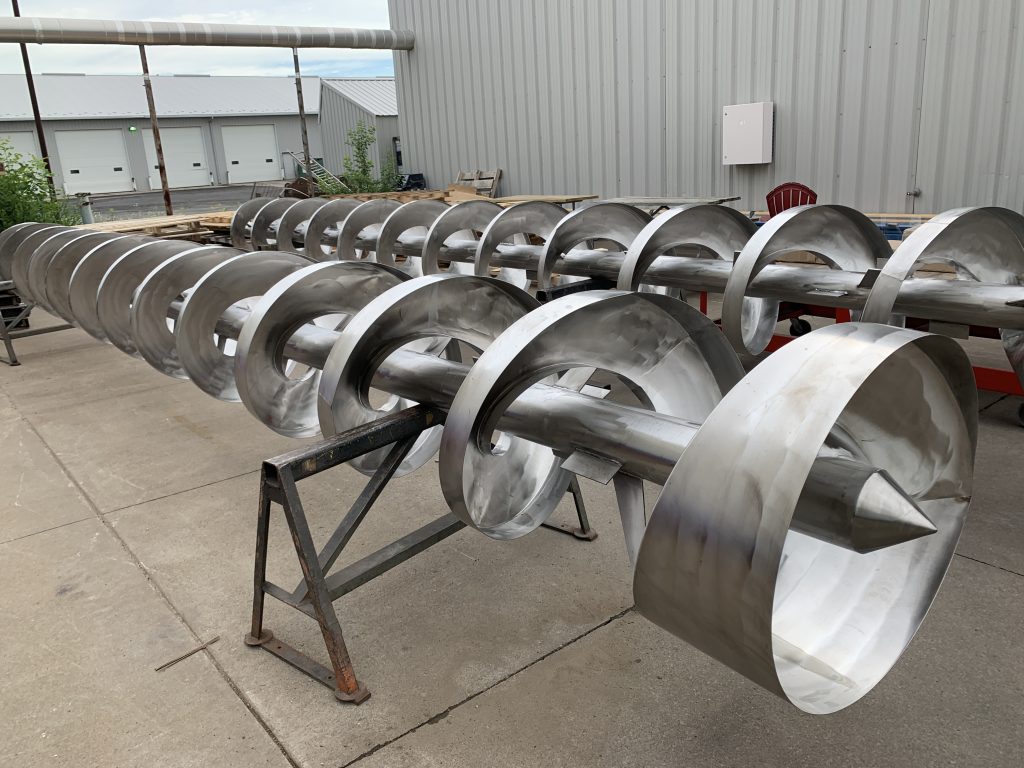

Materials and Construction
Spiral chutes are available in a variety of materials to meet application requirements:
- 304 and 316 stainless steel for sanitary and corrosive environments
- Carbon steel for some industrial applications
- Aluminum for lightweight or corrosion-resistant applications
For food processing systems, chutes can be manufactured with sanitary welds and food-grade finishes to meet processing requirements. Industrial applications may utilize mill or utility finishes to reduce overall project costs.
Engineering and Fabrication

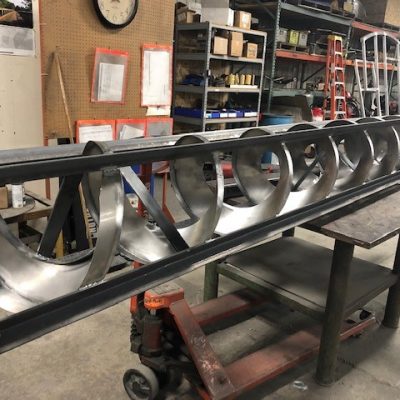

All spiral chutes are designed in 3D CAD software to ensure proper fit, performance, and integration with surrounding equipment. Because material flow characteristics vary significantly between products, prototype testing or pilot chute sections may be recommended to optimize spiral pitch, flow rate, and product handling before final production.
With extensive experience fabricating custom material handling equipment, Astro Metal Craft delivers spiral chute systems designed for long service life, reliable performance, and efficient product movement in demanding industrial environments.
Contact us to discuss your spiral chute fabrication project or request a quote.
