Industrial Water Treatment Headers
What are Water Treatment Headers
Industrial water treatment headers are fabricated piping assemblies designed to distribute water or air evenly throughout industrial water treatment systems. These systems are commonly used in municipal water treatment plants, wastewater facilities, filtration systems, and industrial process applications where consistent flow distribution is critical to system performance.
How Industrial Water Treatment Headers Work
Structurally, a water header consists of a large-diameter main pipe or manifold body with multiple branch outlets welded along its length. The manifold body functions as a centralized distribution chamber designed to evenly distribute water or air throughout downstream piping circuits.
To achieve this, water or air enters the manifold body and is directed through a series of strategically spaced outlet connections. These outlets feed additional piping assemblies, nozzles, lateral systems, or underdrain components within the larger treatment process, ensuring uniform flow distribution across the system.
System Expansion and Flexibility
Headers provide a modular piping approach that allows additional branches or equipment connections to be added without redesigning the entire piping network.
Industrial facilities often use headers to simplify:
- Future expansion projects
- Retrofit installations
- Maintenance modifications
- Equipment upgrades
- Aging infrastructure replacement
Many municipal water treatment facilities currently operate systems originally installed during the 1970s following the passage of the Clean Water Act. As these systems continue to age, retrofit and modernization projects increasingly require custom fabricated header systems designed to integrate into existing infrastructure.
Astro Metal Craft Industrial Water Treatment Headers Case Study
Project Scope
Astro Metal Craft fabricated over 300 stainless steel manifold sections for a water treatment facility retrofit project.
The treatment facility processes:
- Up to 300 million gallons of water per day
- Peak filtration flow rates approaching 780 million gallons per day
Because these facilities operate continuously and process extremely high volumes, header reliability and fabrication quality are essential for long-term system performance.
Welding Headers

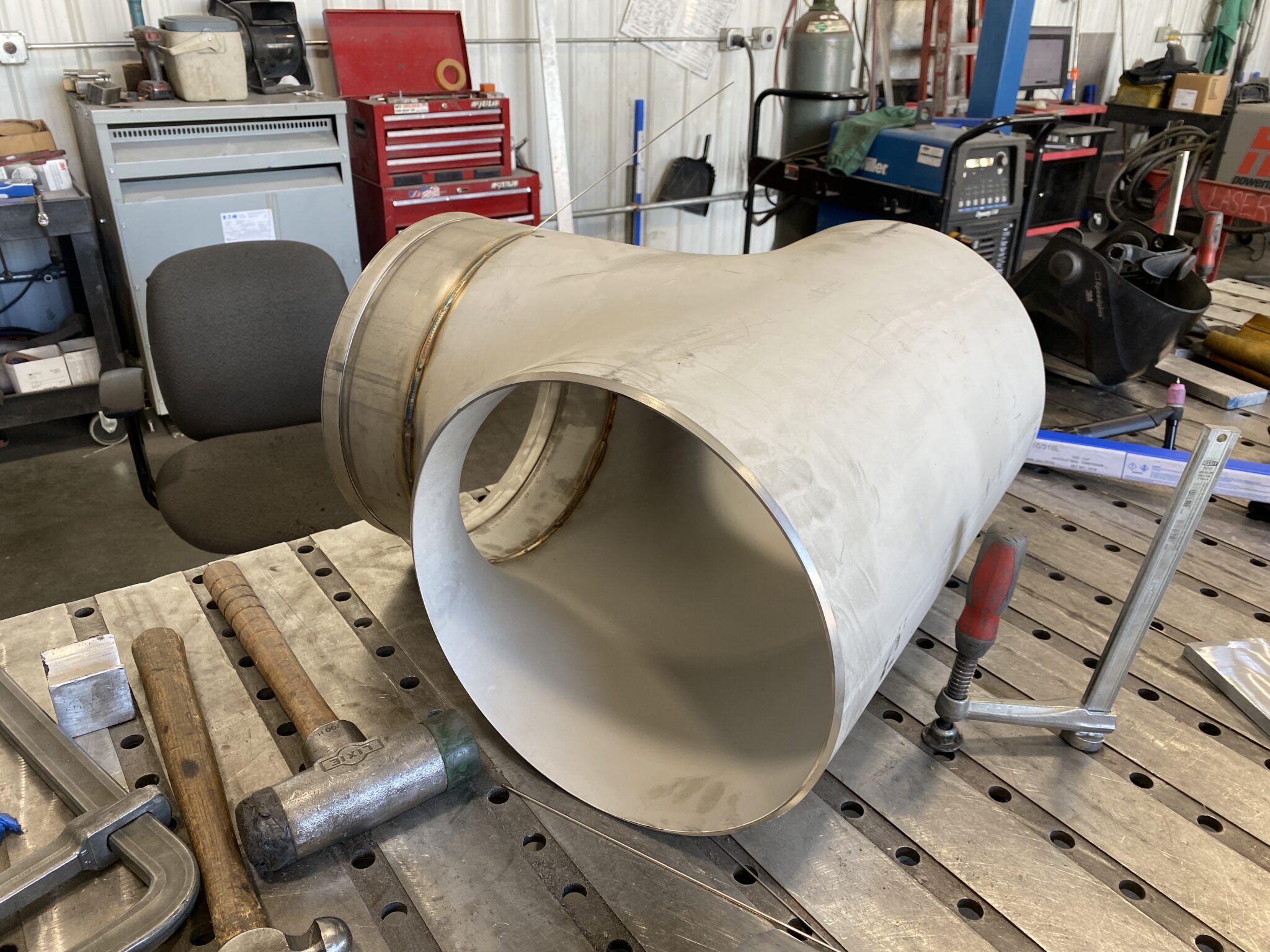

The manifold components were made out of 12-inch Schedule 10 pipe. Using Astro’s in-house tube laser technology, a series of evenly spaced holes were cut along the headers body.

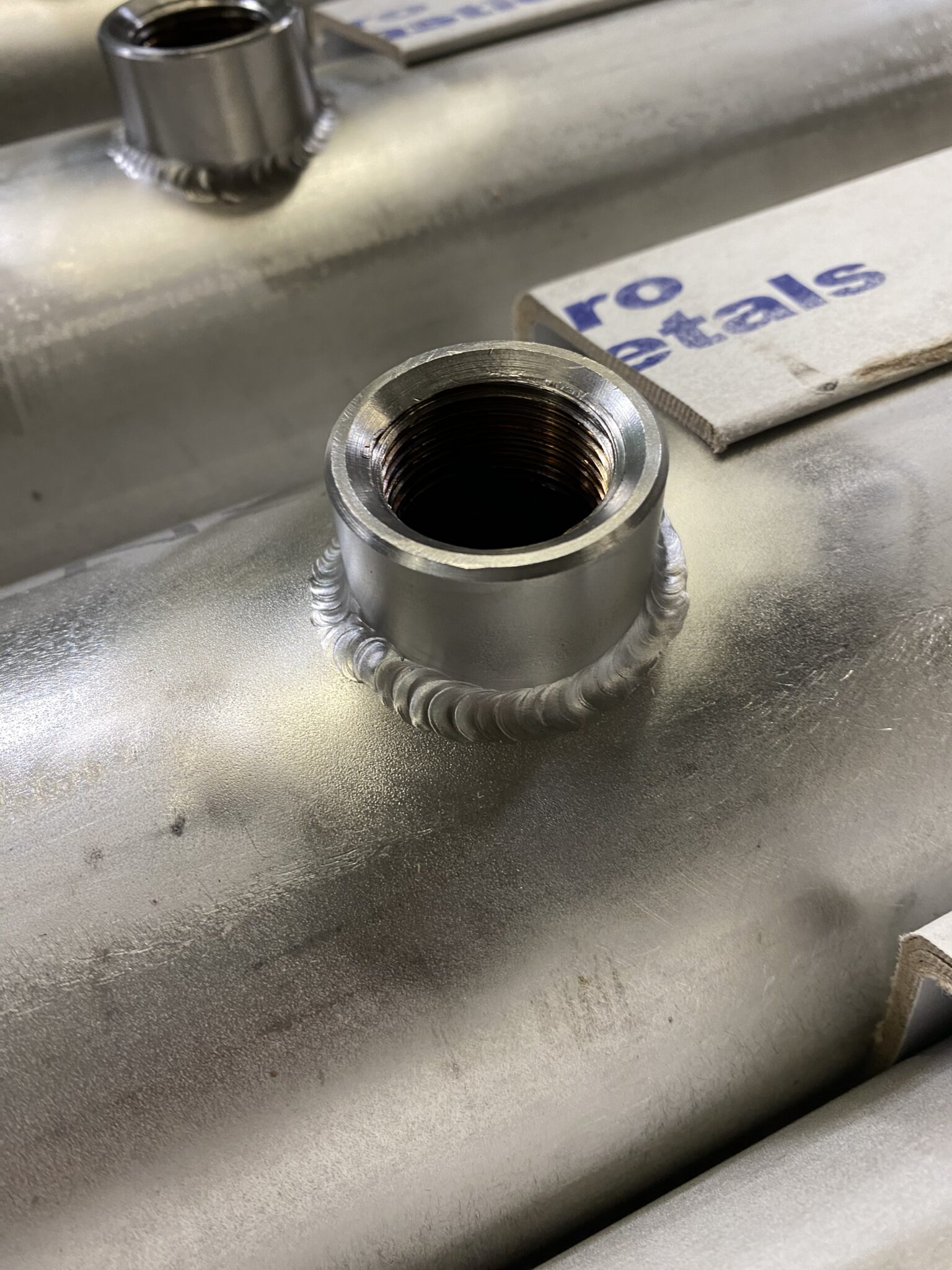

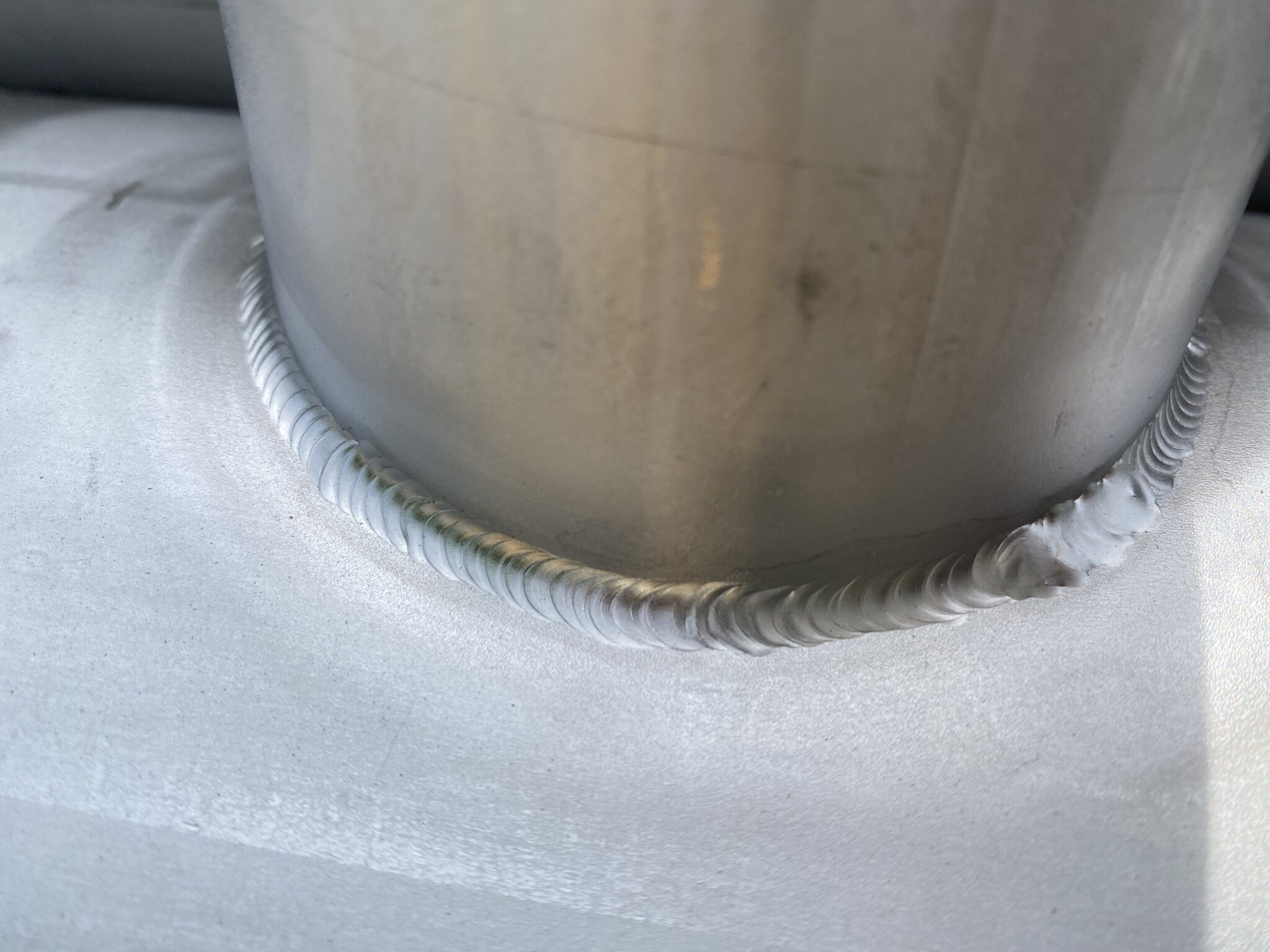

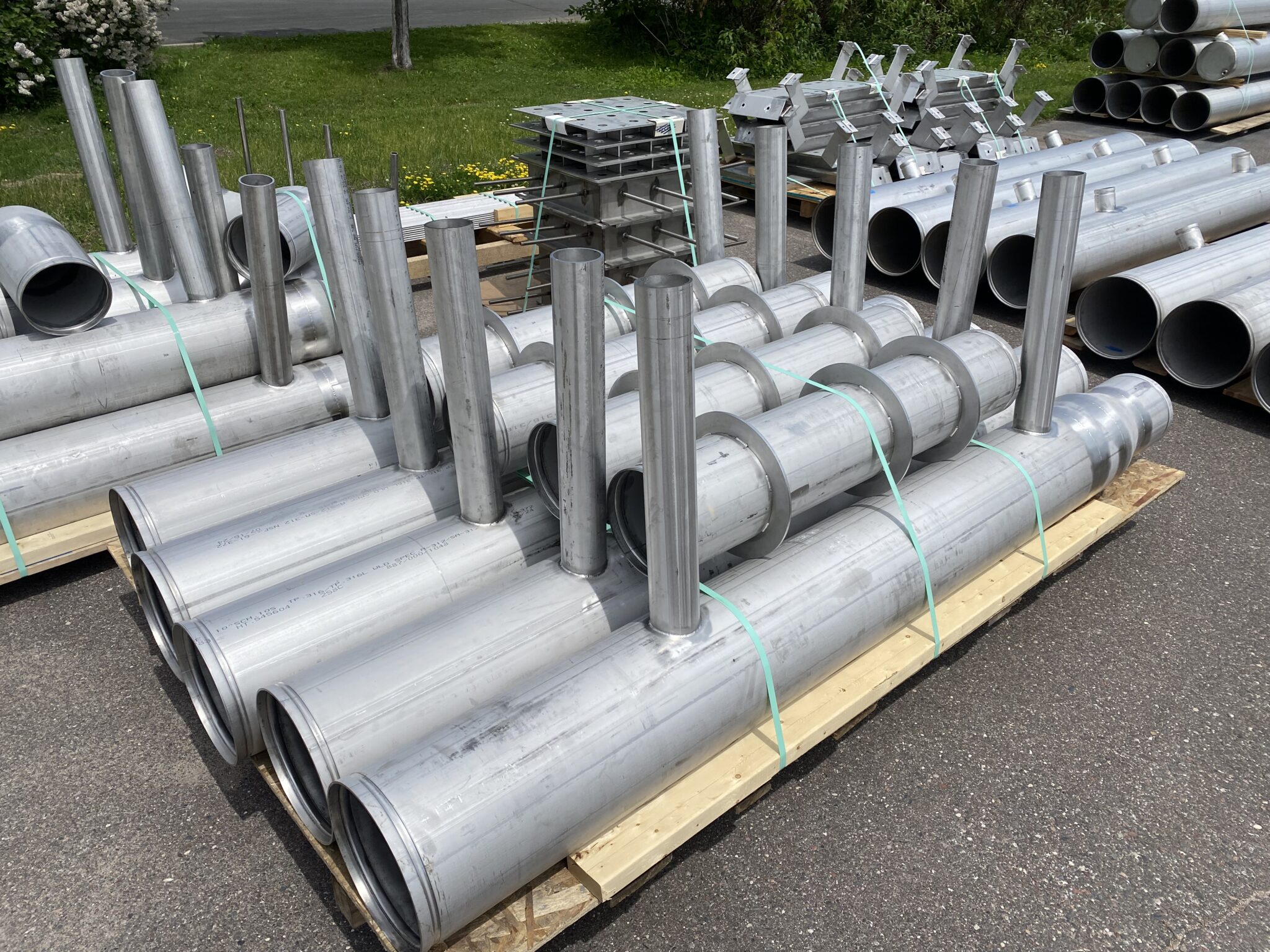

Vertical piping assemblies were then TIG welded onto each outlet connection. These branch assemblies allow water or air to be distributed evenly throughout the treatment system.
Installation Connection Points for Manifolds

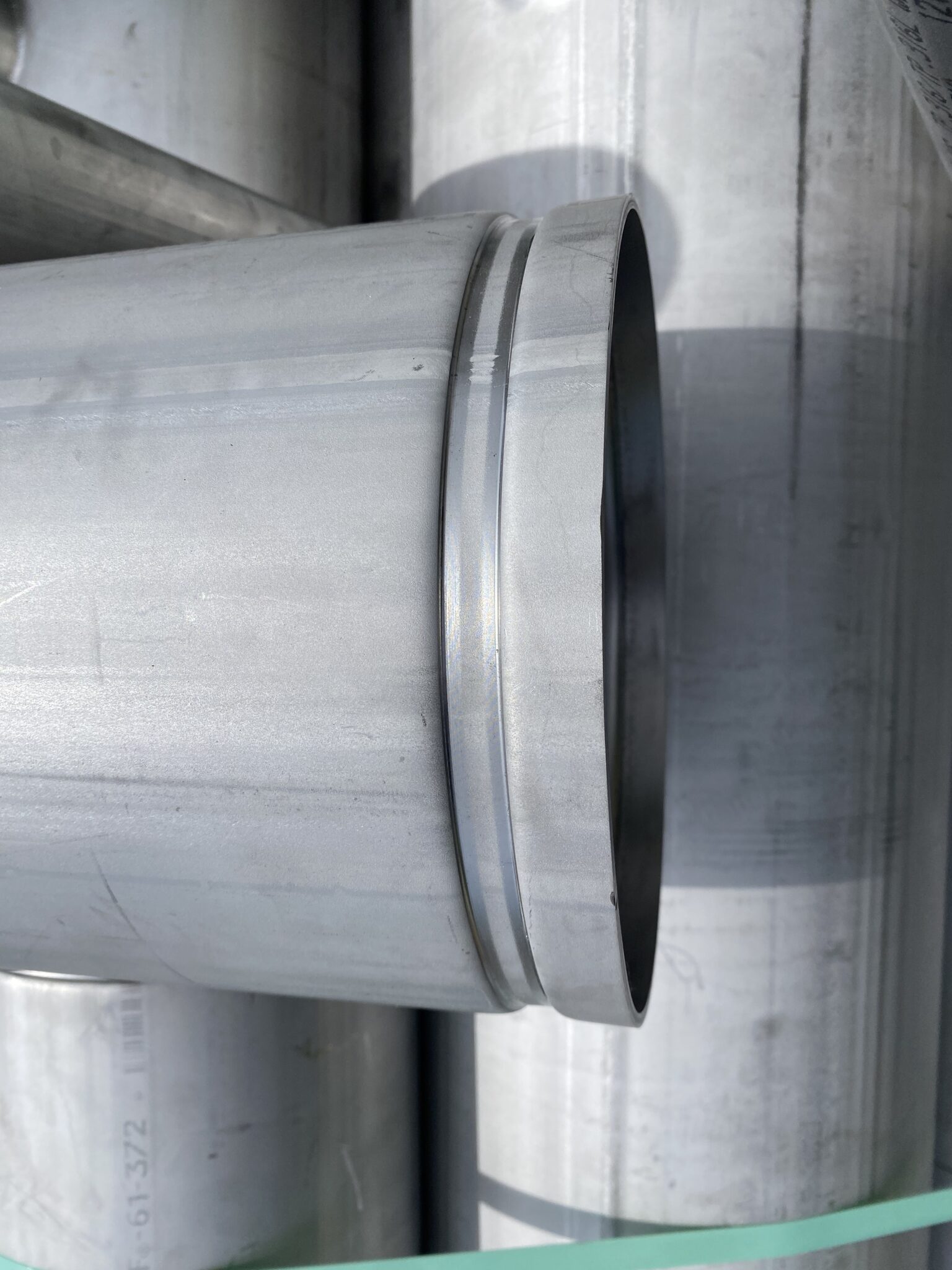

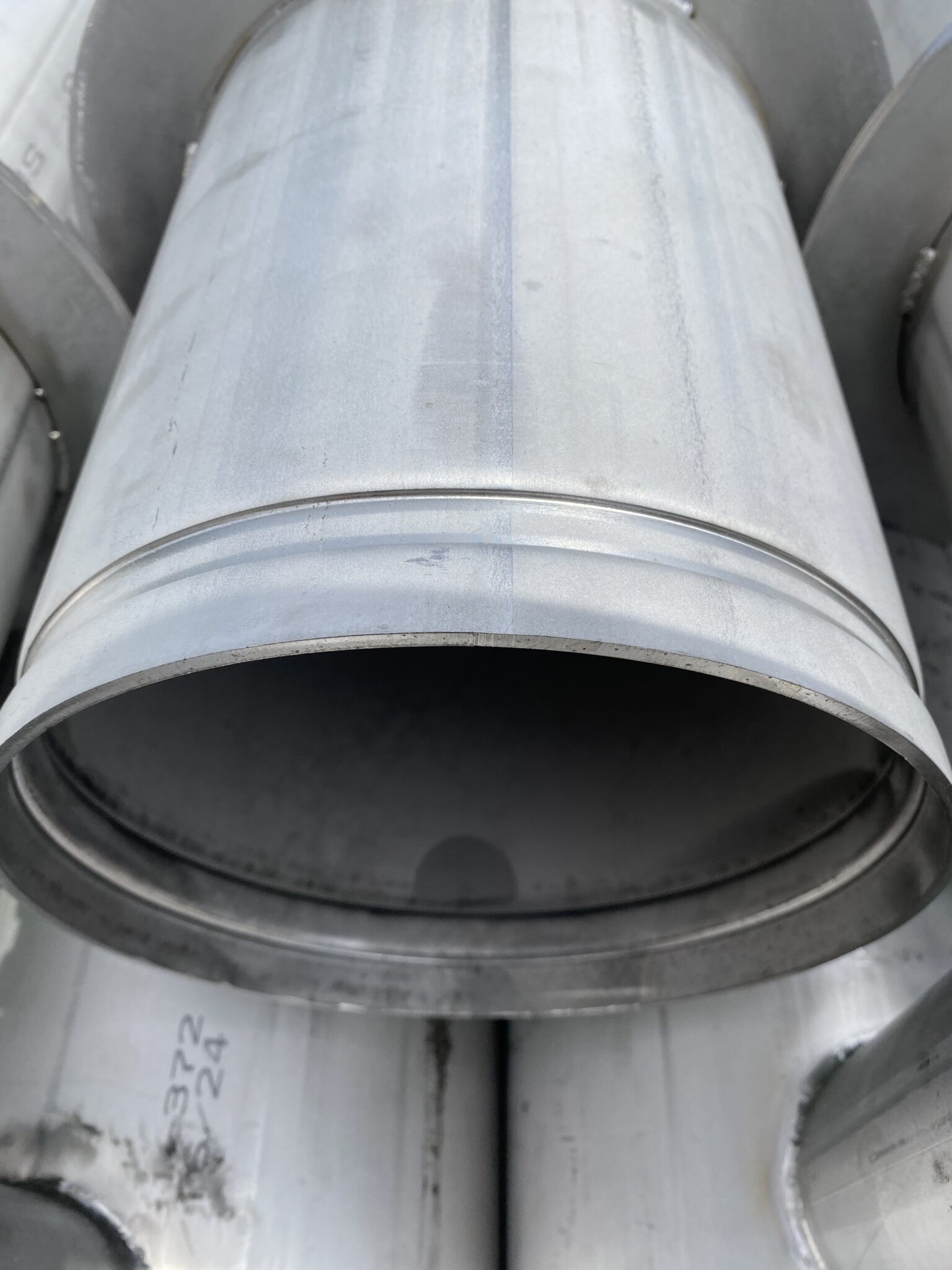

The headers were fabricated in modular sections and installed into a series of more than 70 different 80-foot filtration tanks. Each completed header assembly consists of five individual sections. A precision groove is machine rolled onto the pipe end to serve as the connection point. During installation, a rubber gasket is placed around the grooved connection, followed by the mechanical coupling that joins the two header sections together.
Testing & Quality Control for Industrial Water Treatment Headers
Astro Metal Craft conducted multiple in house and third party quality control procedures throughout the fabrication process to ensure long-term reliability and weld integrity.
These include but are not limited to:
- Leak testing
- Dye penetrant testing
- Dimensional verification
- Weld inspections
All headers were fabricated by qualified welders under the supervision of Certified Welding Inspectors (CWIs) to ensure consistent quality and compliance with project specifications.
Welding procedures for stainless steel fabrication are performed in accordance with AWS D1.6 Structural Welding Code – Stainless Steel standards.
Dedicated stainless fabrication areas were used to prevent cross-contamination from other materials and tooling. Prior to welding, all weld zones were chemically cleaned using acetone and mechanically cleaned using wire brushing or grinding.
Once welding was completed, the assemblies were passivated to remove free iron contamination and restore the protective chromium oxide layer affected by welding heat. This process helps preserve the long-term corrosion resistance and durability of stainless steel.
Retrofit Installation Challenges
For this retrofit project, accommodating field dimension variability and minimizing plant downtime were critical project requirement for the customer. Astro Metal Craft fabricated the headers to match existing application dimensions, ensuring accurate integration into the upgraded system.

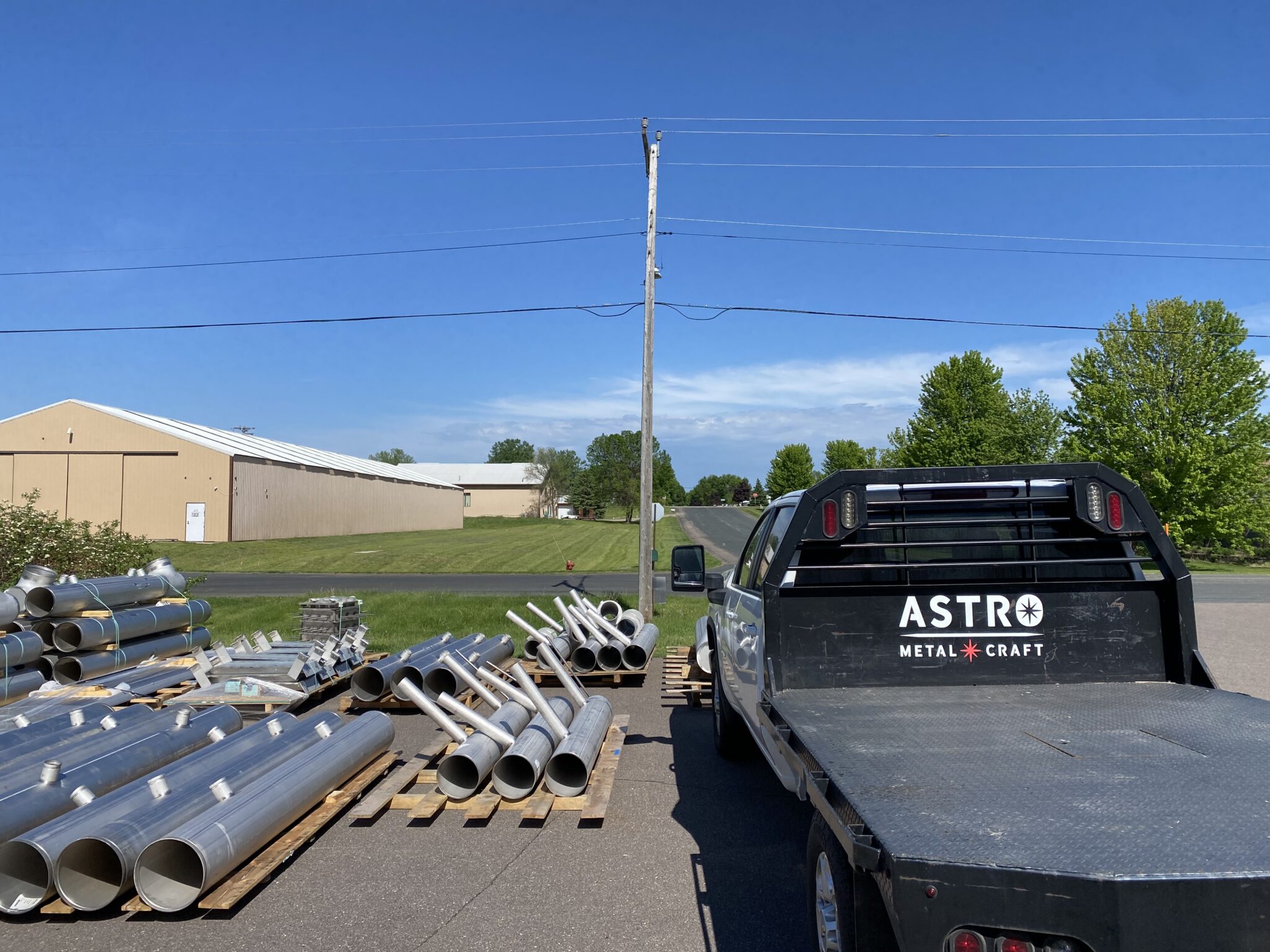

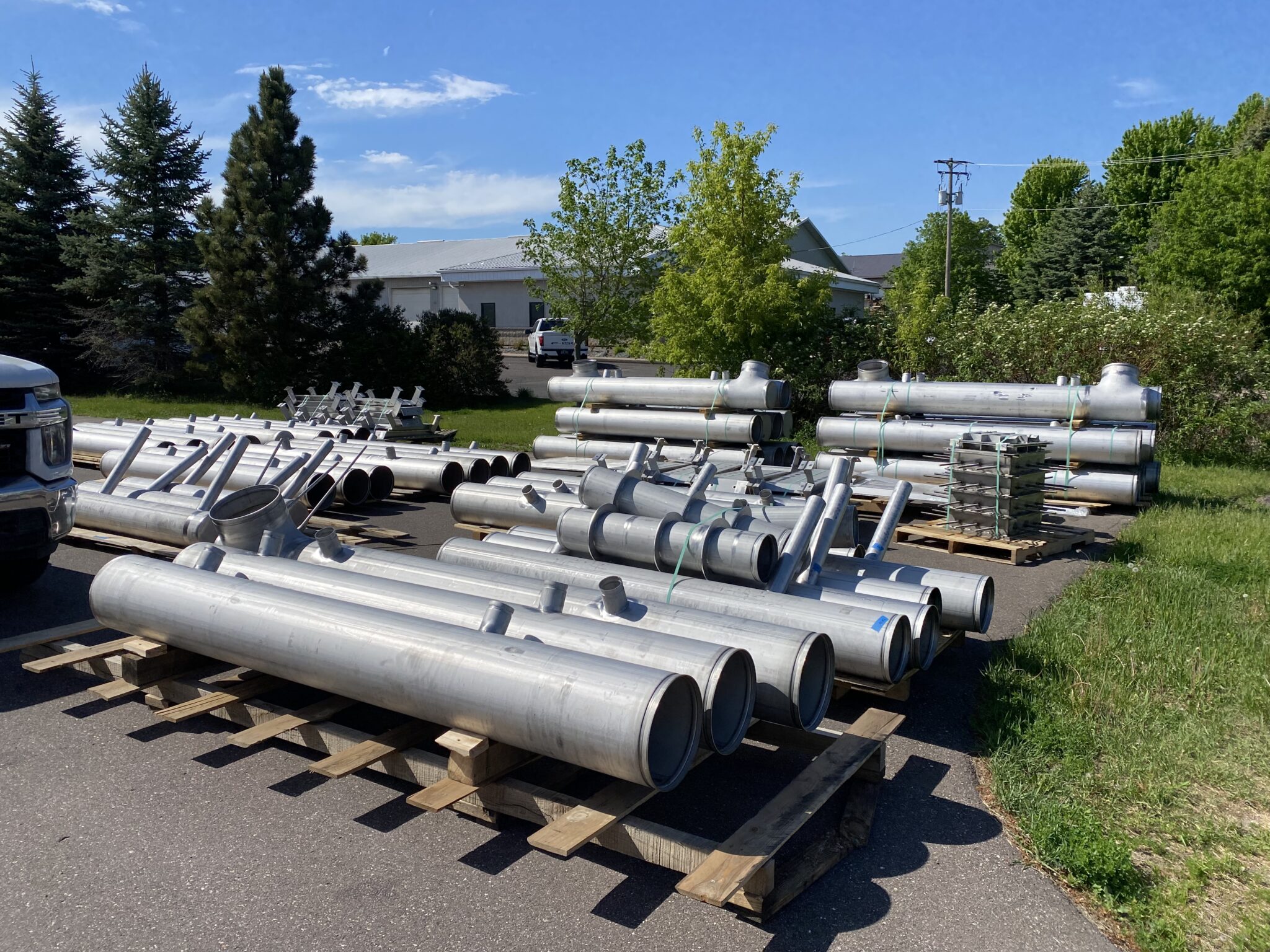

To support the customer’s installation schedule, fabrication and delivery timelines were strategically phased so headers could be installed in planned increments with minimal plant downtime. This project required the headers to be shipped to the final destination.
The Astro team provided a systematic packing and crating solution to maximize freight efficiency and lower down the cost of shipping.
The Astro Advantage
Astro Metal Craft was selected to fabricate the headers for this industrial water treatment retrofit project due to our expertise in managing large scope projects. The customer found value in our advanced fabrication capabilities and experienced project managers operating under one roof. While many fabricators focus only on production, Astro is structured to manage complex, large-scale projects from initial planning through final delivery.
Asto’s project managers were able to work directly alongside our customer and production teams to maintain communication and accountability throughout every phase of the fabrication. This integrated approach provided greater visibility and quality control over the production workflow.
