Custom Truck Fabrication for Septic Pumper
In the liquid waste industry, a standard vacuum truck is rarely sufficient straight off the lot. Septic truck performance depends on how well the unit is tailored to the operator’s job demands. In the field, inefficiency shows up fast. When a hose is buried under other equipment or a tool doesn’t have a dedicated place, it costs time on every single stop. Over the course of a job, those small delays add up.
Custom truck fabrication involves modifying a base vehicle to meet specific operational requirements through structural changes, component integration, and purpose-built storage solutions. In the case of a septic pumper, this often includes tank modifications, external storage systems, corrosion-resistant upgrades, and layout optimization for field efficiency. This recent custom truck fabrication project is a clear example of how thoughtful design and purpose-built storage can transform day-to-day performance.
Starting with a Blank Platform & Designing for Real-World Needs

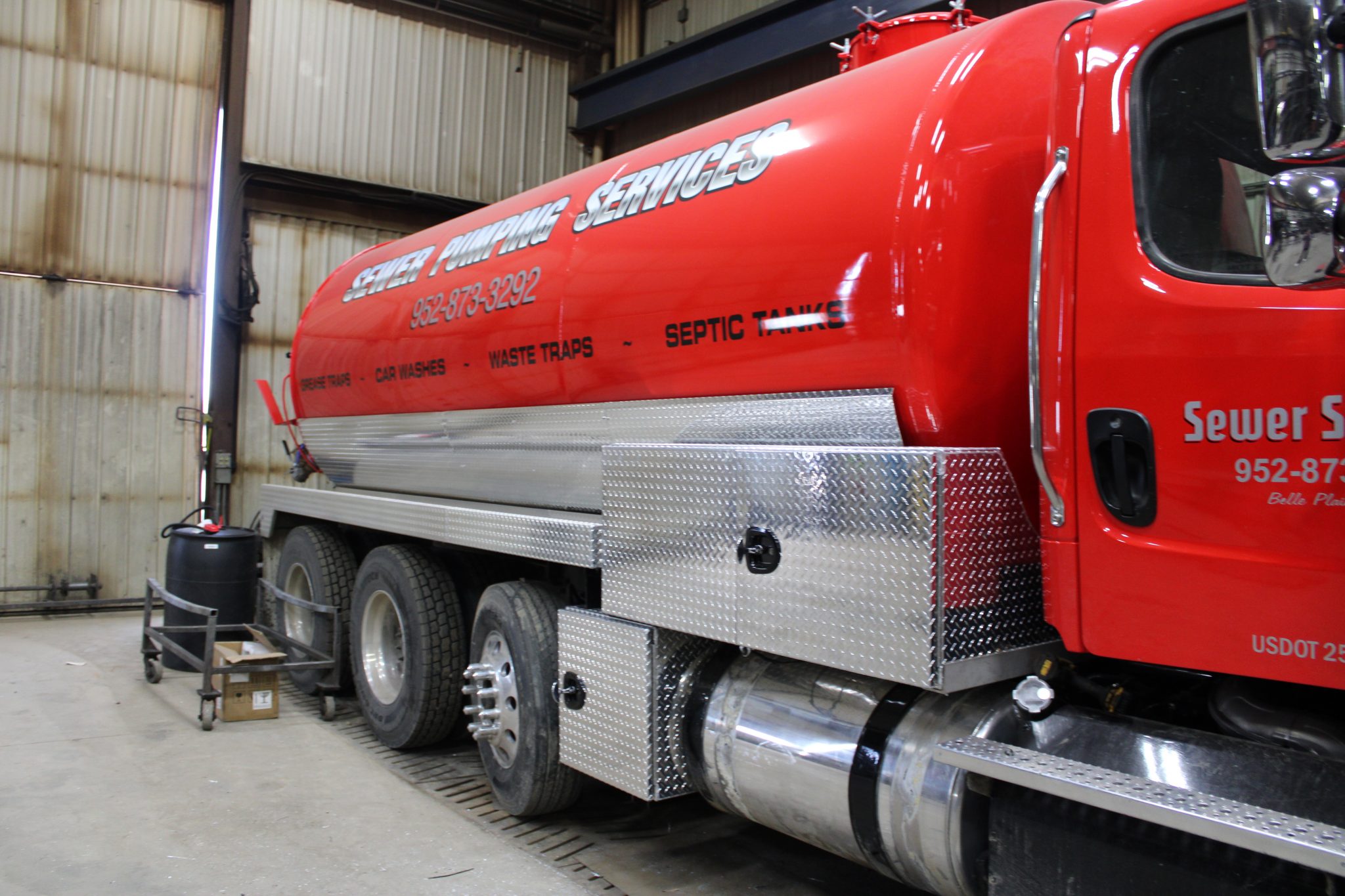

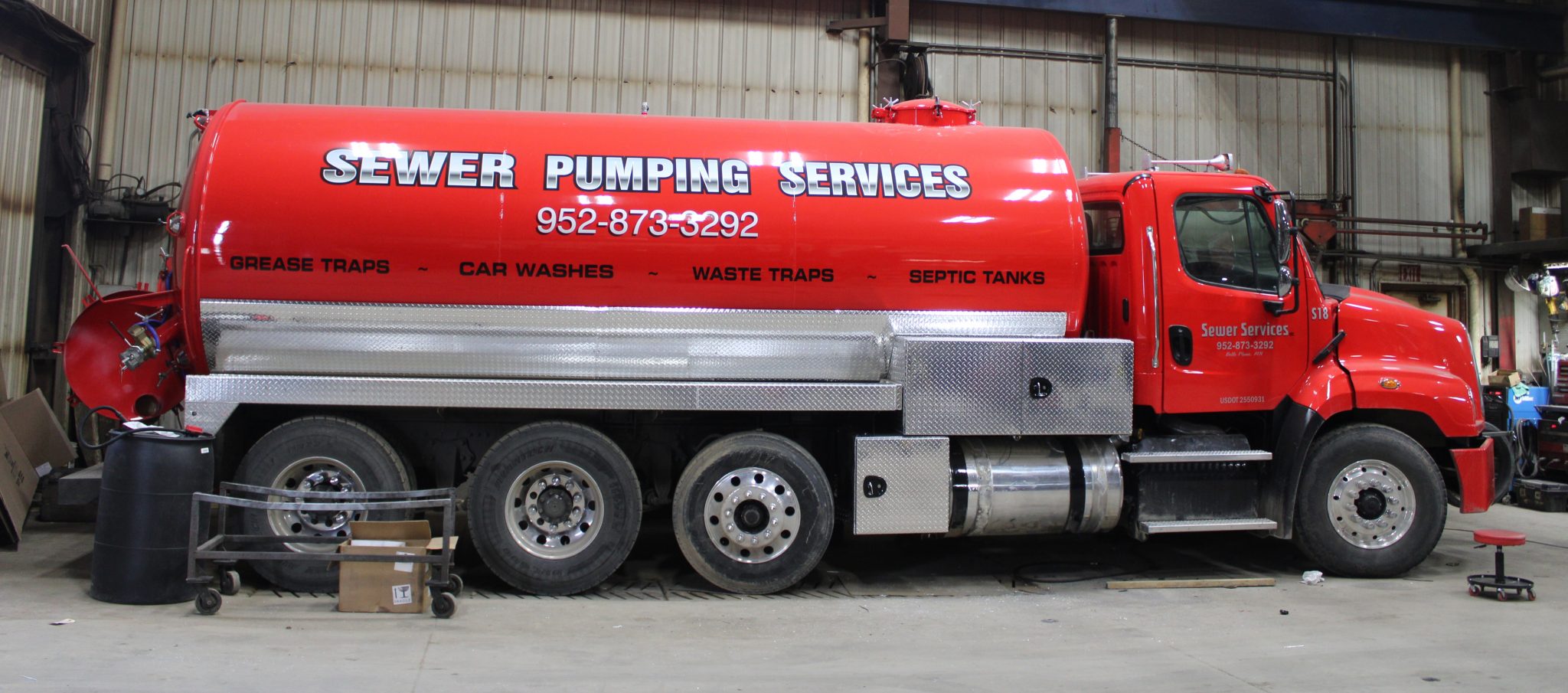

When our team at Storms’ Welding and Repair first met with the owner and their maintenance team, the conversation centered around efficiency rather than aesthetics. This build started with a standard chassis-mounted vacuum truck equipped with a rear-mounted septic pumper tank. The unit provided the necessary hauling capacity, but lacked the external infrastructure required to support daily service operations efficiently.
On a typical job, operators move quickly between tasks by pulling hoses, setting pumps, and grabbing PPE. Without intentional storage, that process turns into constant digging, lifting, and repositioning. By undergoing a custom truck fabrication, everything was made visible, reachable, and exactly where it should be for the job.
Custom Truck Fabrication Storage: Stainless Steel Components

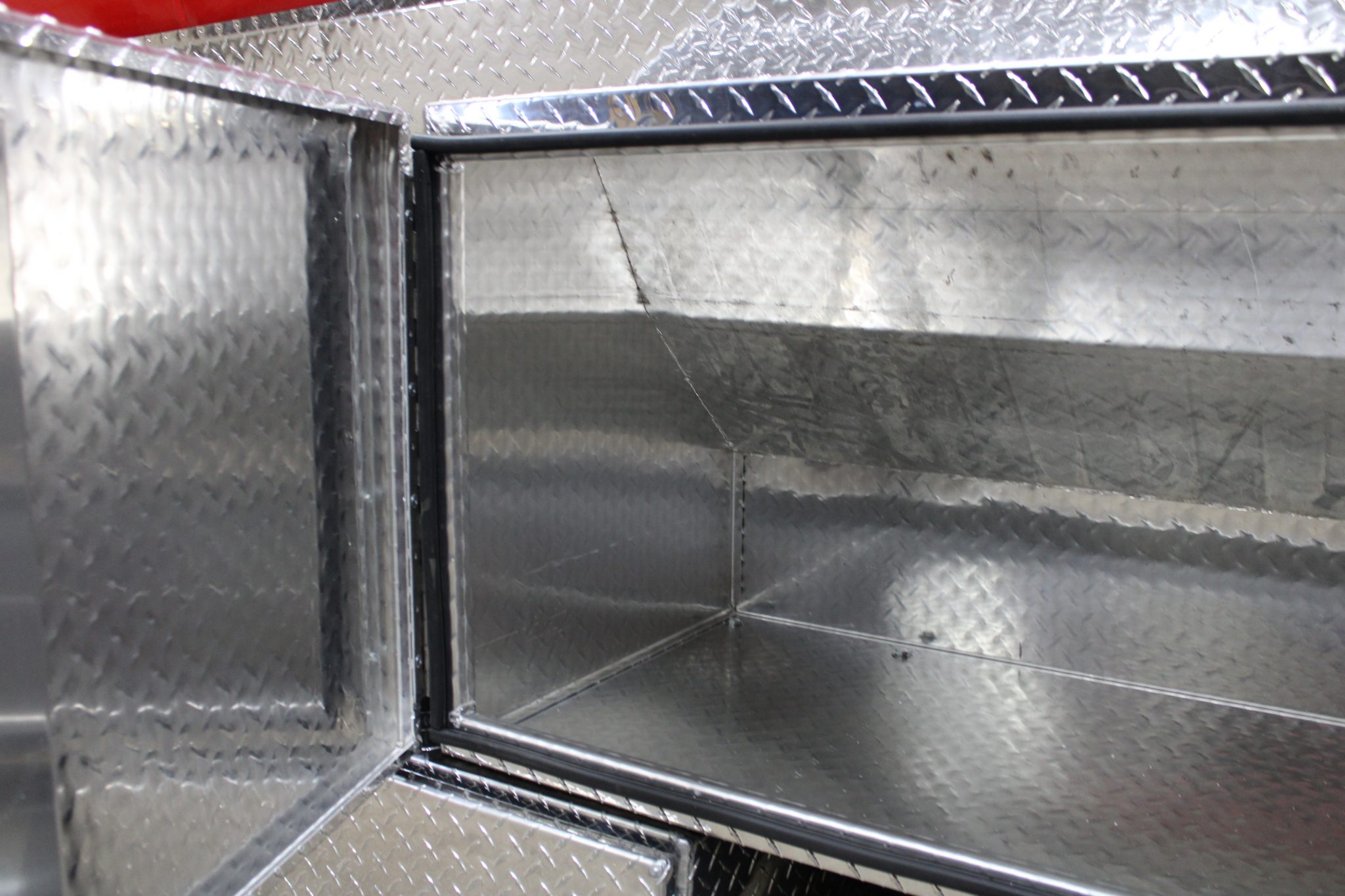

To maximize storage for this build, we sourced pre-manufactured stainless-steel storage boxes and modified them in-house to meet the exact spatial constraints of the truck. Each truck component was measured to ensure a correct fit. Fabrication included cutting, forming, and welding pre-manufactured stainless steel boxes, followed by test fitting and final installation to the truck body.
Each box was:
- Custom cut and welded to fit around existing components
- Welded for structural integrity and longevity
- Precisely installed to optimize every inch of available space

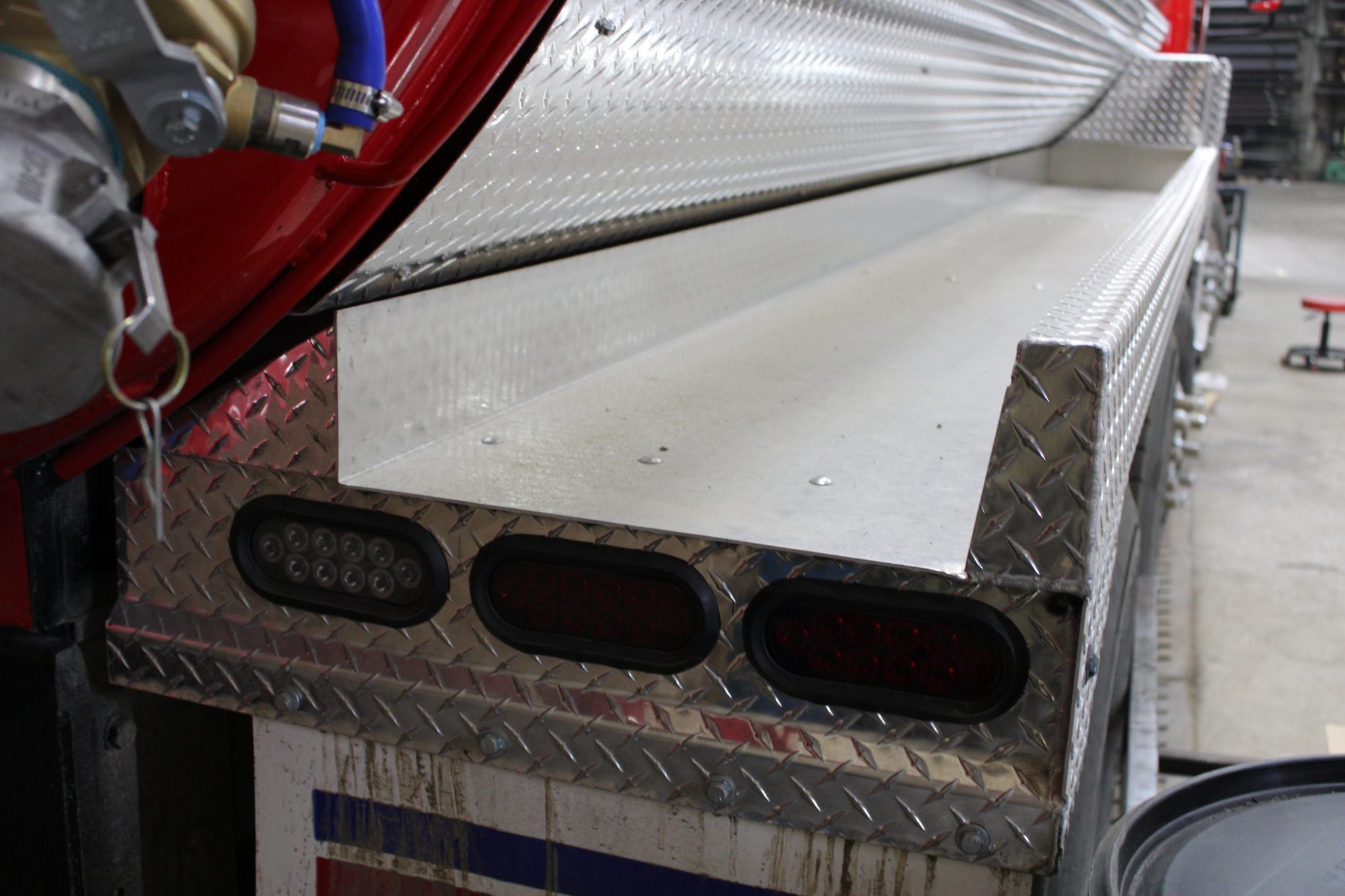

The final layout added multiple linear feet of horizontal storage along the truck body, allowing full-length suction hoses and system pumps to be stored without coiling or disassembly. These trays were designed for both secure transport and quick deployment, reducing setup time on-site.
In addition, we integrated multiple custom storage compartments along the exterior of the septic pumper, ensuring that every piece of equipment has a dedicated, accessible location.
Corrosion Resistance and Internal Tank Improvements
Inside a septic tank, gases such as hydrogen sulfide can accelerate corrosion, especially on mild steel components. Without proper material upgrades, this can lead to structural degradation, leaks, and increased maintenance costs over time.
As part of this custom truck fabrication, we upgraded a structural vertical pipe inside the tank, replacing it with stainless steel. Stainless steel was selected for high-contact and high-exposure components due to its resistance to hydrogen sulfide corrosion, moisture exposure, and chemical breakdown. This proactive measure significantly improves corrosion resistance and extends the service life of the vacuum truck.
Protecting the Tank Exterior

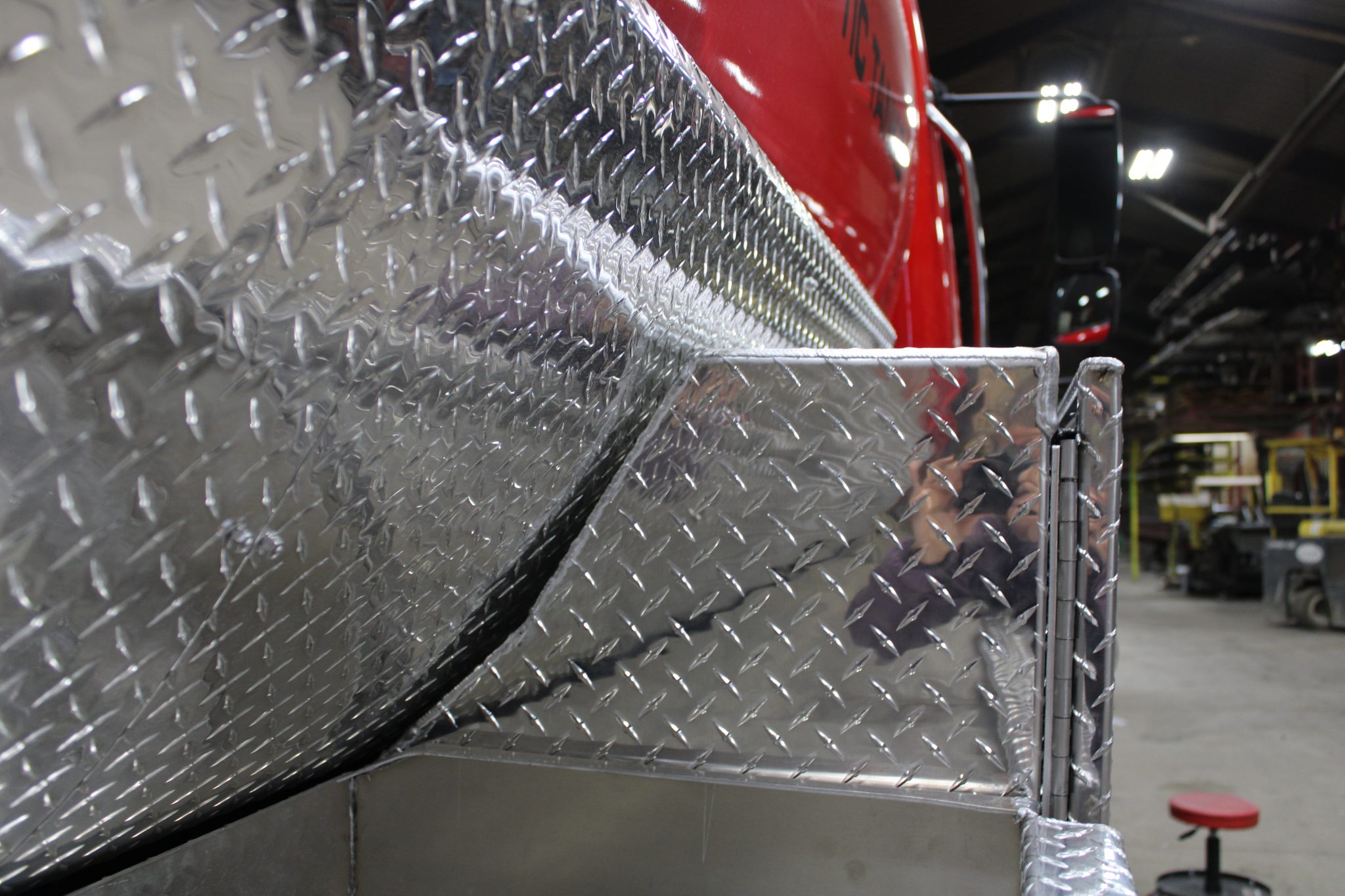

In addition to internal durability, external protection was also a priority. We fabricated a custom stainless-steel shield that runs the horizontal length of the septic truck, extending approximately one-third of the way up the tank.
This protective barrier serves a critical function:
- Shields the tank from corrosive and unsanitary materials
- Prevents damage from pumps and equipment during loading/unloading
- Maintains the long-term integrity and appearance of the liquid waste truck
Overcoming Spatial Constraints in Custom Truck Fabrication
One of the key challenges in this custom truck fabrication was working around tight clearances and existing mechanical limitations.
Fuel Tank Access:

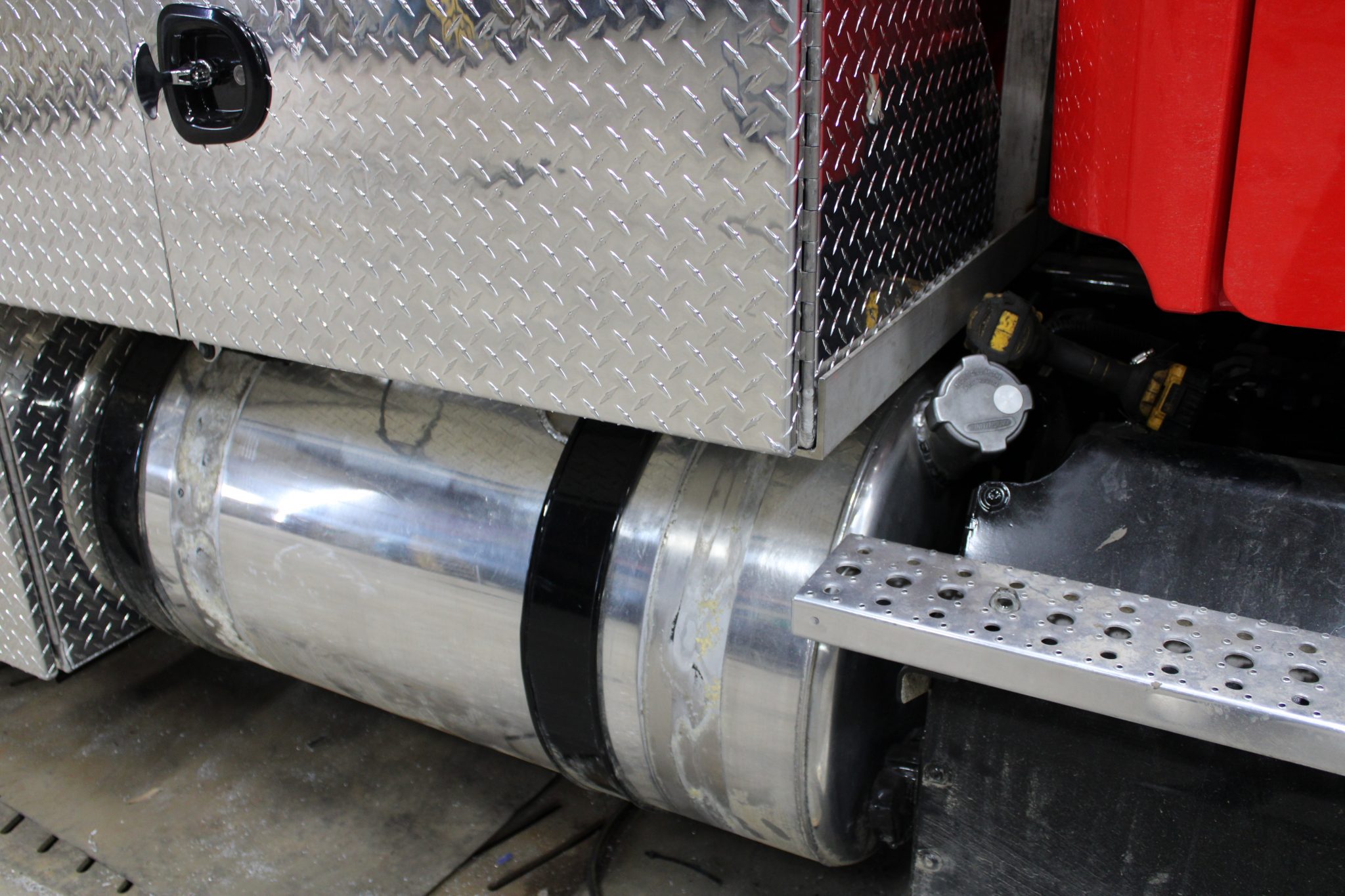

To improve usability and free up valuable side space, we relocated the fuel tank filler to the top of the tank. This not only maximized storage potential but also made refueling more efficient for the operator.
Wheel Clearance Adjustments:
The front wheel axle had minimal clearance relative to one of the storage boxes. To resolve this, we modified the box by cutting and reshaping it to ensure proper wheel articulation.
The team prioritized DOT compliance throughout the custom truck fabrication process. We were able to maintain proper axle weight distribution, preserve visibility and lighting requirements, and ensure all modifications did not interfere with safe vehicle operation.
Built for Versatility Across Applications
This vacuum tanker is designed to handle a wide range of applications, including:
- Residential sewer mound systems (raised drain fields)
- Septic and holding tanks
- Grease traps
- Catch basins
- Car wash systems
- Lift stations
- Manure pits
- Washout bins
- Trench drains
Operator-Centric Modifications
Understanding how a customer uses the truck day-to-day matters just as much as the fabrication itself. In this case, the vacuum truck is operated by a single technician. To better support this workflow, we removed the passenger seat and repurposed the space into dedicated interior storage for power tools and essential equipment.
This small but impactful change improves cab organization and ensures that critical tools are always within reach.
Custom Truck Fabrication Results
For companies operating vacuum tankers, septic pumpers, or other liquid waste trucks, custom truck fabrication is an essential operational investment.
Storm’s Welding & Repair was proud to be a part of this project. We custom fabricated this truck to meet the customer’s specific needs and the demands of their daily work.
