Perforated Guardrails – Galaxy

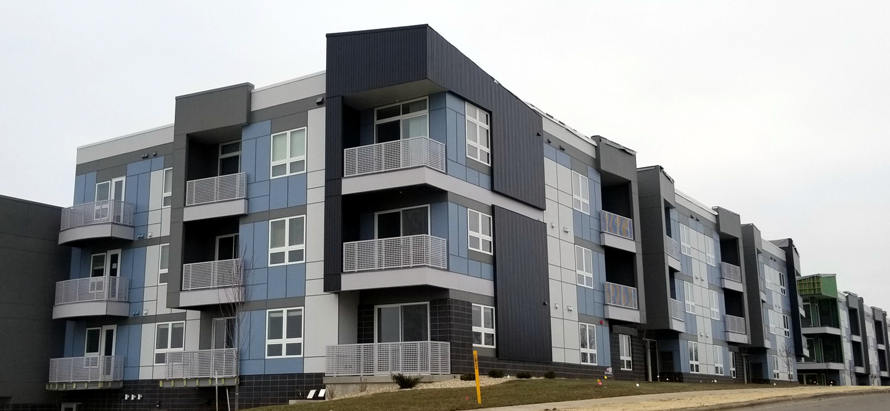

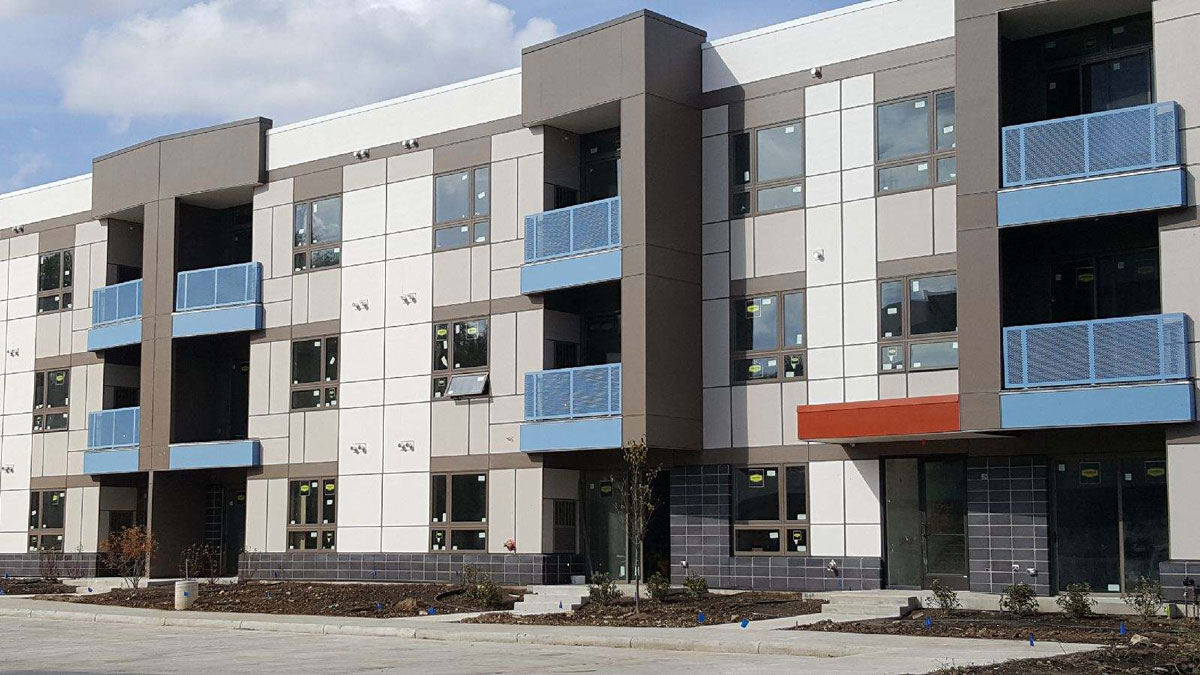

StellarCraft Galaxy Guardrail is a perforated aluminum railing, specifically for balconies, stairs, and other elevated spaces. With the primary goal of creating divisions of space and maintaining occupant safety, the addition of perforated paneling regulates ventilation, noise, shade, visibility, and privacy. These panels add a unique architectural element to any elevated space.

Balconies   /   Stairs   /   Elevated Spaces
Balconies   /   Stairs
Elevated Spaces

Standard Options

finishes – fluoropolymer coatings

powder coating, anodized finish, aluminum finish, aluminum, finishing

infill patterns

StellarCraft has 12 standard pre-engineered infill patterns and unlimited colors, textures and gloss finishes. Stellarcraft offers high-performance coatings with an extended gloss range that can create looks never before possible with powder, including mineral tones and textures that mimic cement, stone, teracotta and anodized metal.

If you do not see a pattern or finish you’re looking for, please contact us for more information. Dimensions for your product will be determined by your project’s specifications.

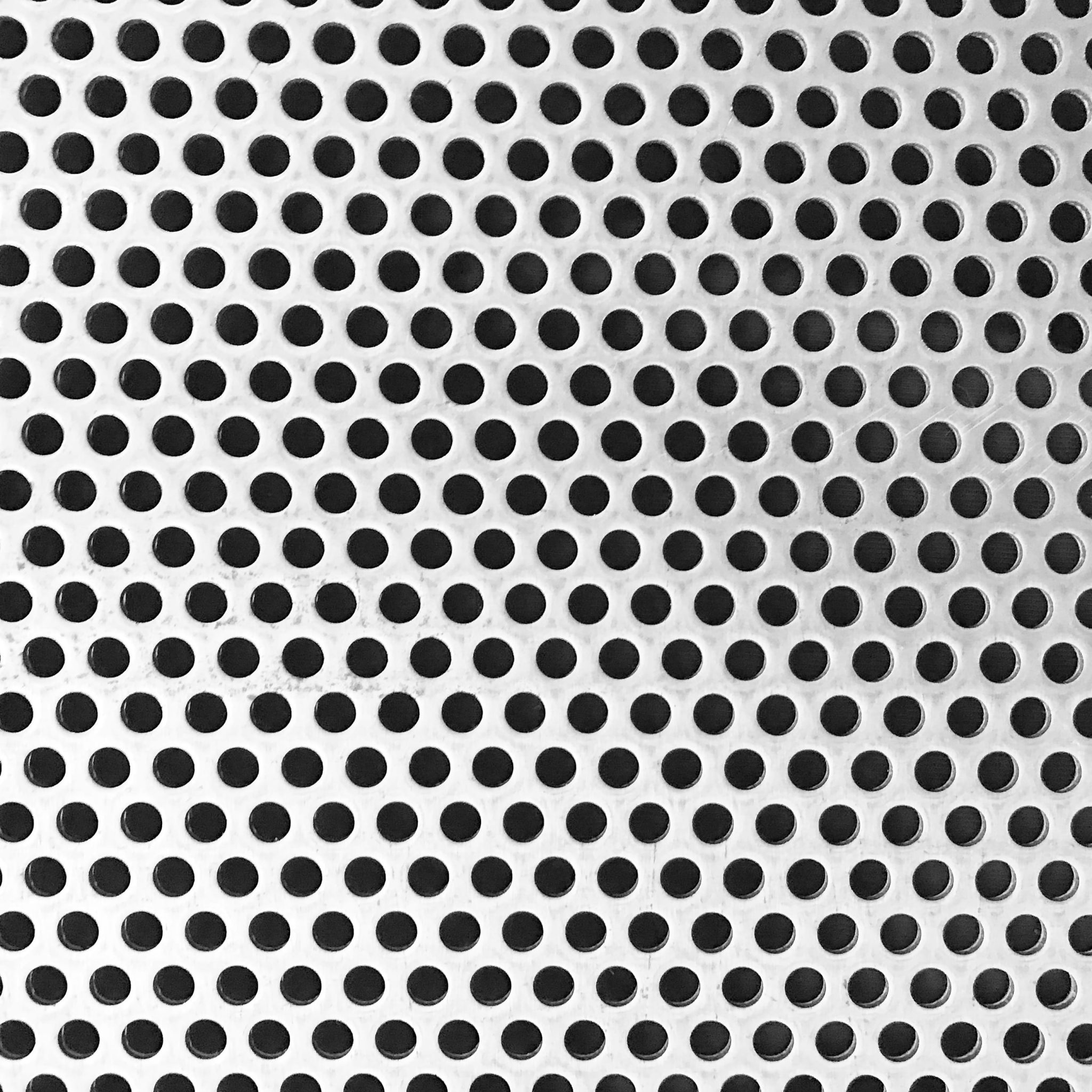

Circle
Cosmic
Herringbone
Herringbone Pointed
Flower
Garden Party
Honeycomb
Octidot
Roman
Square
Wave
Windmill
try it out

See How It Fits

Step

Download Revit or
Autocad File

Step

Download Product Sheet for
A full list of parameters

Step

Download product specs
& Adjust accordingly

standards

Standards & Codes

Design and manufacturing of the Galaxy Guardrail has been performed to meet or exceed relevant standards and codes.

International
Building Code

International Building Code logo
American Architectural Manufacturers Association

American Architectural
Manufacturers
Association

Minnesota State
Building Code

MN State Seal
American Society for Testing and Materials logo

American Society
For Testing
And Materials

The Society
For Protective
Coatings

The Society for Protective Coatings logo
American Welding Society logo

American
Welding Society

The Aluminum
Association,
Inc.

The Aluminum Association logo
ADA logo

Americans with
Disabilities Act
Accessibility Guidelines

standards

Standards & Codes

Design and manufacturing of the Galaxy Guardrail has been performed to meet or exceed relevant standards and codes.
International Building Code logo

International
Building Code

American Architectural Manufacturers Association

American
Architectural
Manufacturers
Association

MN State Seal

Minnesota State
Building Code

American Society for Testing and Materials logo

American Society
For Testing
And Materials

The Society for Protective Coatings logo

The Society
For Protective
Coatings

American Welding Society logo

American
Welding Society

The Aluminum Association logo

The Aluminum
Association,
Inc.

ADA logo

Americans with
Disabilities Act
Accessibility
Guidelines

fabrication

Fabrication & Installation

measure twice, cut once

All StellarCraft products are fabricated to the exact project dimensions, pattern, and finish specified. Verifying dimensions through field measurement is an essential step prior to manufacturing. When field measuring, it is important to verify the actual locations of walls and other construction contiguous with the installation location.

precision installation

The Galaxy Guardrail uses a baseplate mounting system. Baseplates can be field adjusted for an easier, more precise installation.

Download to view the
technical drawing.

Download to view the technical drawing.

Technical Specifications

  Extrusion Alloy: 6061-T6 Series

  Perforated Panel Alloy: 5052

■  Exposed Fasteners: Button head screws or bolts, consistent with the fence design

■  Welding Electrodes: Complies with AWS requirements

■  Fasteners, Anchors & Inserts: 304 stainless

■  Maximum Material Thickness: Not to exceed 0.314” (8mm)

■  Maximum Material Width: Not to exceed 60”

■  Maximum Material Length: Not to exceed 144”

■  StellarCraft Galaxy Guardrails are used in all railing applications that must comply with IBC structural strength and dimensions.

■  Horizontal concentrated load of 50 lbs. applied to 1 sq. ft. at any point in system, including panels, intermediate rails, balusters, or other elements composing infill area.
