Parking Garages   /   Building Façades  /   Architectural Elements

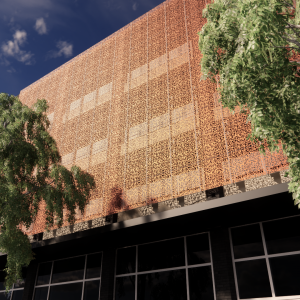

Altair Perforated Panels are cost effective, vertical support panels formed to created rigidity and strength to meet code for parking structures and building façades. Aluminum perforated metal patterns come in a variety of shapes and sizes for a truly unique façade. These cost-effective panels are lightweight, yet durable, and virtually maintenance free.

Parking Garages   /   Building Façades  /   Architectural Elements

Standard Options

finishes – fluoropolymer coatings

powder coating, anodized finish, aluminum finish, aluminum, finishing

infill patterns

StellarCraft has 12 standard pre-engineered infill patterns and unlimited colors, textures and gloss finishes. Stellarcraft offers high-performance coatings with an extended gloss range that can create looks never before possible with powder, including mineral tones and textures that mimic cement, stone, teracotta and anodized metal.

If you do not see a pattern or finish you’re looking for, please contact us for more information. Dimensions for your product will be determined by your project’s specifications.

Circle
Cosmic
Herringbone
Herringbone Pointed
Flower
Garden Party
Honeycomb
Octidot
Roman
Square
Wave
Windmill
try it out

See How It Fits

Step

Download Revit or
Autocad File

Step

Download Product Sheet for
A full list of parameters

Step

Download product specs
& Adjust accordingly

standards

Standards & Codes

Design and manufacturing of the Altair Perforated Panels has been performed to meet or exceed relevant standards and codes.

International
Building Code

International Building Code logo
American Architectural Manufacturers Association

American Architectural
Manufacturers
Association

Minnesota State
Building Code

MN State Seal
American Society for Testing and Materials logo

American Society
For Testing
And Materials

The Society
For Protective
Coatings

The Society for Protective Coatings logo
American Welding Society logo

American
Welding Society

The Aluminum
Association,
Inc.

The Aluminum Association logo
ADA logo

Americans with
Disabilities Act
Accessibility Guidelines

standards

Standards & Codes

Design and manufacturing of the Galaxy Guardrail has been performed to meet or exceed relevant standards and codes.
International Building Code logo

International
Building Code

American Architectural Manufacturers Association

American
Architectural
Manufacturers
Association

MN State Seal

Minnesota State
Building Code

American Society for Testing and Materials logo

American Society
For Testing
And Materials

The Society for Protective Coatings logo

The Society
For Protective
Coatings

American Welding Society logo

American
Welding Society

The Aluminum Association logo

The Aluminum
Association,
Inc.

ADA logo

Americans with
Disabilities Act
Accessibility
Guidelines

fabrication

Fabrication & Installation

measure twice, cut once

All StellarCraft products are fabricated to the exact project dimensions, pattern, and finish specified. Verifying dimensions through field measurement is an essential step prior to manufacturing. When field measuring, it is important to verify the actual locations of walls and other construction contiguous with the installation location.

precision installation

The Altair Perforated Panels are pre-engineered systems with installation in mind. Our engineers have figured out the support structures and connection details for the panel system so all you need to do is plug and play. Our collaborative design process allows architects to focus on the aesthetics while we manufacture the results.

Download to view the panel system and connection details.

Download to view the mounting system.

Technical Specifications

  Aluminum Tube Support Alloy: 6061-T6 Series, ASTM B221

  Aluminum Plate Alloy: ASTM B209, 5052-H32

■  Exposed Fasteners: Button head screws or bolts, consistent with the fence design

■  Welding Electrodes: Complies with AWS requirements

■  Fasteners, Anchors & Inserts: 304 stainless

■  Maximum Material Thickness: Not to exceed 0.314” (8mm)

■  Maximum Material Width: Not to exceed 60”

■  Maximum Material Length: Not to exceed 144”

■  Vertical Supports – Rectangular Tube: 6″ x 2″ x 0.125″

■  Angle Clips: 3″ x 3″ x 0.188″

■  StellarCraft Altair Perforated Panels comply with IBC structural strength and dimensions.

■  Wind load ASCE-7/10 40PSF and 60PSF

■  Deflection of aluminum panels to be L/60 max. Deflection of panel framing members to be L/175 max.

■  Thermal Movements: Allow for thermal movements from ambient and surface temperature changes acting on exterior metal fabrications by preventing buckling, opening of joints, overstressing of components, failure of connections, and other detrimental effects.
