Metal Spiral Chute for Bin Loading
Fabricating a Metal Chute for Bin Loading and Material Piling

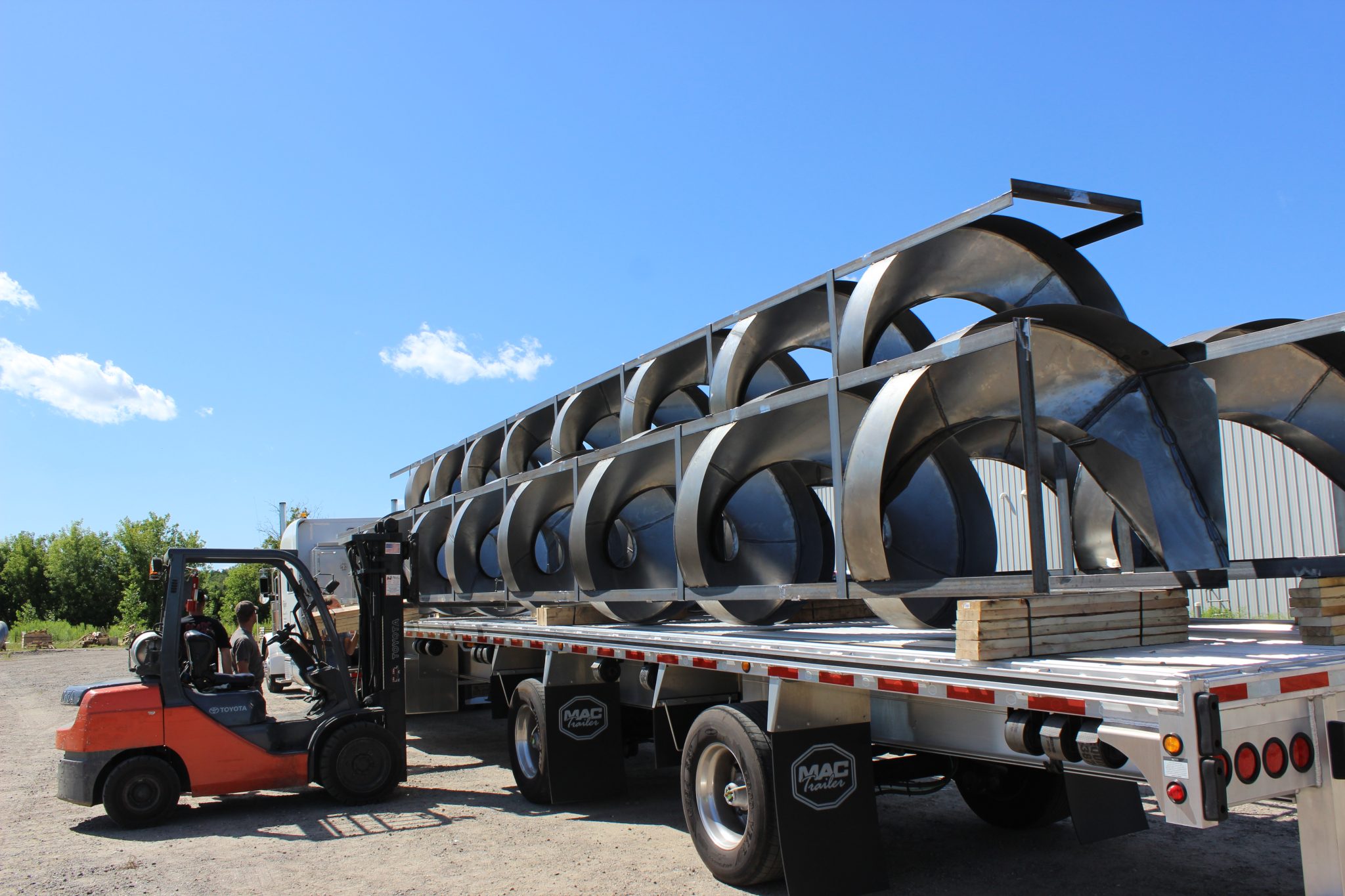

Believe it or not, some of us at Astro get a little emotional when our projects are complete and the hauling truck arrives to load. Saying goodbye to our development, our handiwork, and our pride and joy is sometimes a little hard. That’s what happened when this metal spiral chute for bin loading drove off into the horizon. With that said, we had to take an employee picture before we said goodbye to this massive spiral chute.
When bulk material needs to move from an elevated conveyor into a storage bin, hopper, silo, or dome, simply letting it fall straight down isn’t a viable option. A long free fall can increase material velocity, create dust, damage fragile products, and contribute to uneven piling.
At Astro Metal Craft, we design and fabricate custom spiral bin loading chutes and systems.
An 85-Foot Spiral Chute for Fertilizer Storage
The spiral chute shown above is approximately 85 feet tall and was fabricated from 304 stainless steel for a fertilizer facility. A conveyor feeds fertilizer into the top of the chute, and gravity carries the material down the spiral before it is discharged into a storage dome.
For an application like this, the chute has to do more than simply connect the conveyor to the dome. The design needs to account for the material’s flow characteristics, the significant vertical drop, the required throughput, the structural support system, and how the material will accumulate inside the dome.
This is where custom spiral chute design becomes important.
What Types of Bins Can Use a Bin Loading Chute?
A metal chute for bin loading can be used with many different types of storage and material-handling equipment, including:
- Bulk storage bins
- Hoppers
- Silos
- Domes
- Storage vessels
- Process bins
- Material accumulation systems
Every storage system is a little different. The available opening, roof or vessel shape, internal equipment, desired piling pattern, and discharge location can all affect the design of the chute.
The goal is to create a connection between the upstream conveyor or feeding equipment and the storage vessel that allows material to move reliably while fitting within the available space.
Designing a Spiral Chute Around the Material
There isn’t one spiral chute design that works for every material.
A chute handling fertilizer, for example, may have very different requirements from one handling food products, plastic pellets, grain, or other bulk materials. That’s why the material itself is one of the first things considered when designing a spiral material handling chute.
Depending on the application, important material characteristics can include:
- Particle size and shape
- Bulk density
- Flowability
- Moisture content
- Abrasiveness
- Fragility
- Temperature
- Coefficient of friction
- Required throughput
These characteristics influence how material moves along the chute and how quickly it travels.
◇ Choosing the Right Chute Diameter
The diameter of a spiral chute affects both the available flow area and the overall spiral geometry.
A chute handling a high volume of material may require a larger diameter to provide sufficient flow capacity. Particle size, material characteristics, throughput, available space, and the desired material velocity also need to be considered.
The objective isn’t simply to make the chute as large as possible. The diameter needs to provide enough room for the required material flow while maintaining predictable movement through the spiral.
◇ How Chute Height Affects the Design
The required vertical drop is another major consideration.
Chute height is determined by the difference between where the material enters the chute and where it needs to be discharged. Some applications require only a relatively short drop, while others may involve several stories of elevation.
The 85-foot fertilizer chute shown above is an example of a system designed for a substantial vertical distance.
For taller installations, the chute may also require an independent structural support system. The height, diameter, pitch, and number of turns all work together to determine the overall geometry of the chute.

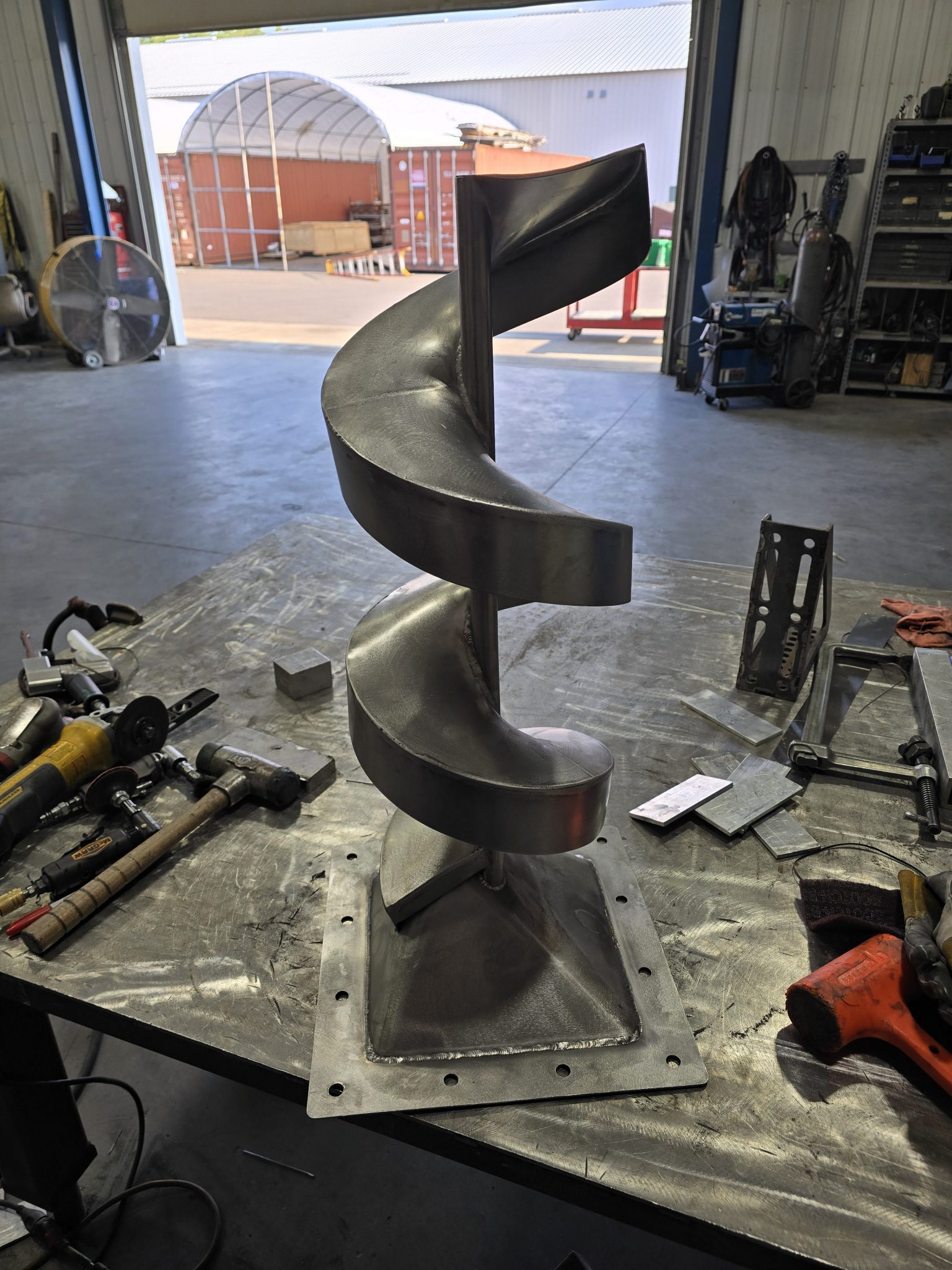

◇ Spiral Geometry Controls Material Movement
The shape of the spiral plays a major role in how material travels through the chute.
Pitch, radius, slope, number of revolutions, and transitions can all affect material velocity and discharge behavior. Unlike a straight vertical drop, a spiral gives the material a much longer path to travel between the inlet and outlet.
That longer path gives the chute an opportunity to control the material’s descent.
However, simply adding more turns isn’t the answer. The geometry needs to be matched to the material. The goal is to create a consistent flow without excessive acceleration, bouncing, buildup, or impact.
◇ How Does a Spiral Chute Reduce Material Impact?
Think about what happens when material is allowed to fall freely from the top of a tall bin.
By the time it reaches the bottom, it can be traveling at a significant velocity. When it hits the bottom of the vessel or an existing pile, that energy has to go somewhere. Depending on the material, the result can be product breakage, dust, segregation, or unnecessary wear on equipment.
A spiral chute changes the way the material makes that descent.
The material enters the chute from the conveyor or feed system and begins traveling down the spiral. Gravity continues to move the material downward, but the extended travel path helps manage its acceleration. By the time the material reaches the lower elevation, it can be discharged at a more controlled velocity.
◇ Designing the Discharge for Material Piling

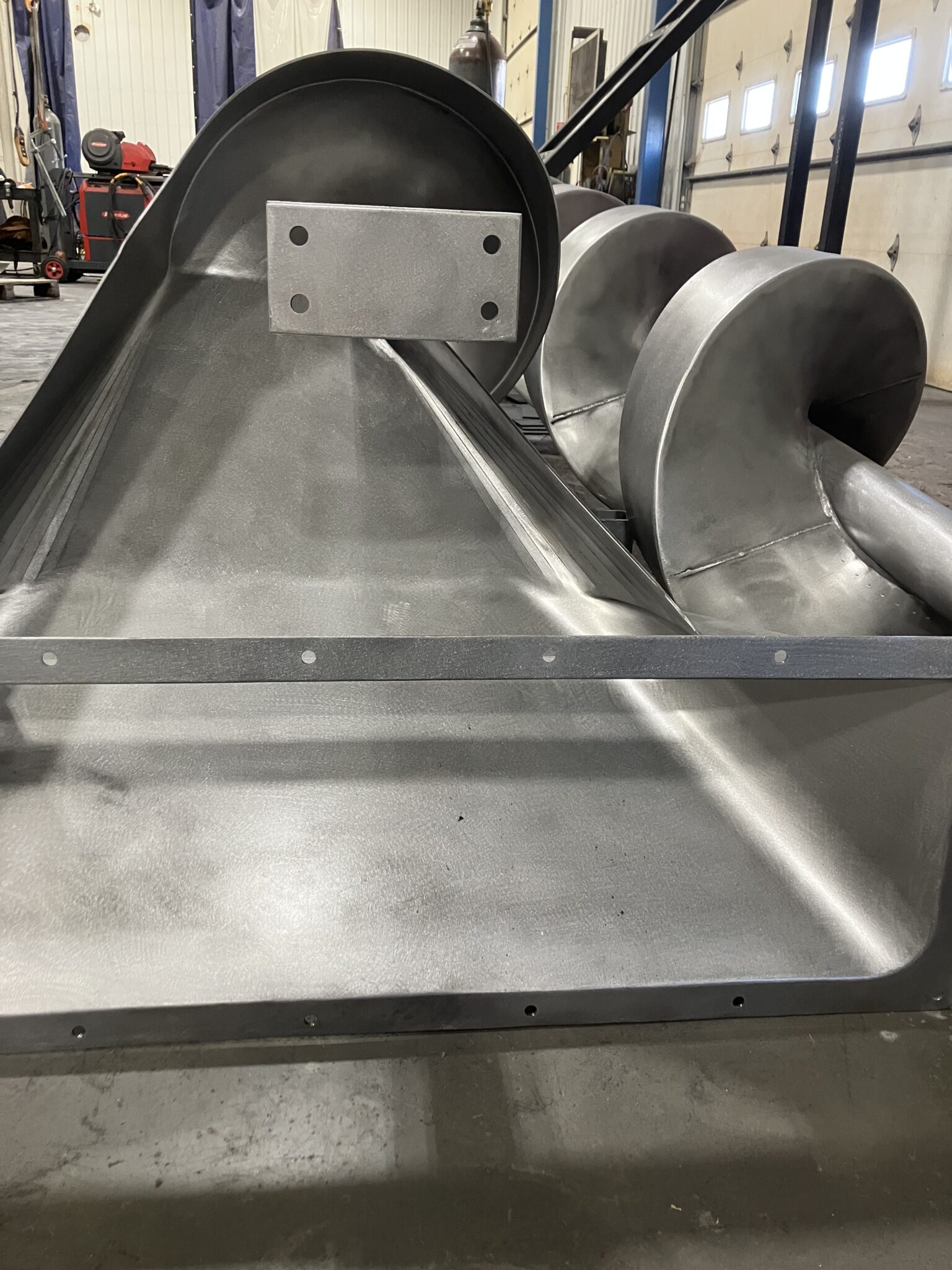

The bottom of the chute is just as important as the top.
A material piling chute needs to discharge material in a way that works with the storage vessel and the way the material is expected to accumulate.
Depending on the application, the discharge may be designed to:
- Direct material toward a particular area
- Build a controlled pile
- Reduce the remaining free-fall distance
- Work around internal bin components
- Maintain clearance from the vessel
- Accommodate material as the pile grows
The relationship between the chute outlet and the material pile can change during operation. As the pile gets higher, the distance between the outlet and material surface decreases.
That means the expected operating conditions should be considered during the design process rather than looking only at the initial discharge location.
Custom Spiral Chute Fabrication at Astro Metal Craft
A successful spiral chute for bin loading starts with understanding the entire material-handling system.
Astro Metal Craft works with customers to understand the application, evaluate material-flow requirements, develop the chute design, and fabricate the finished system.

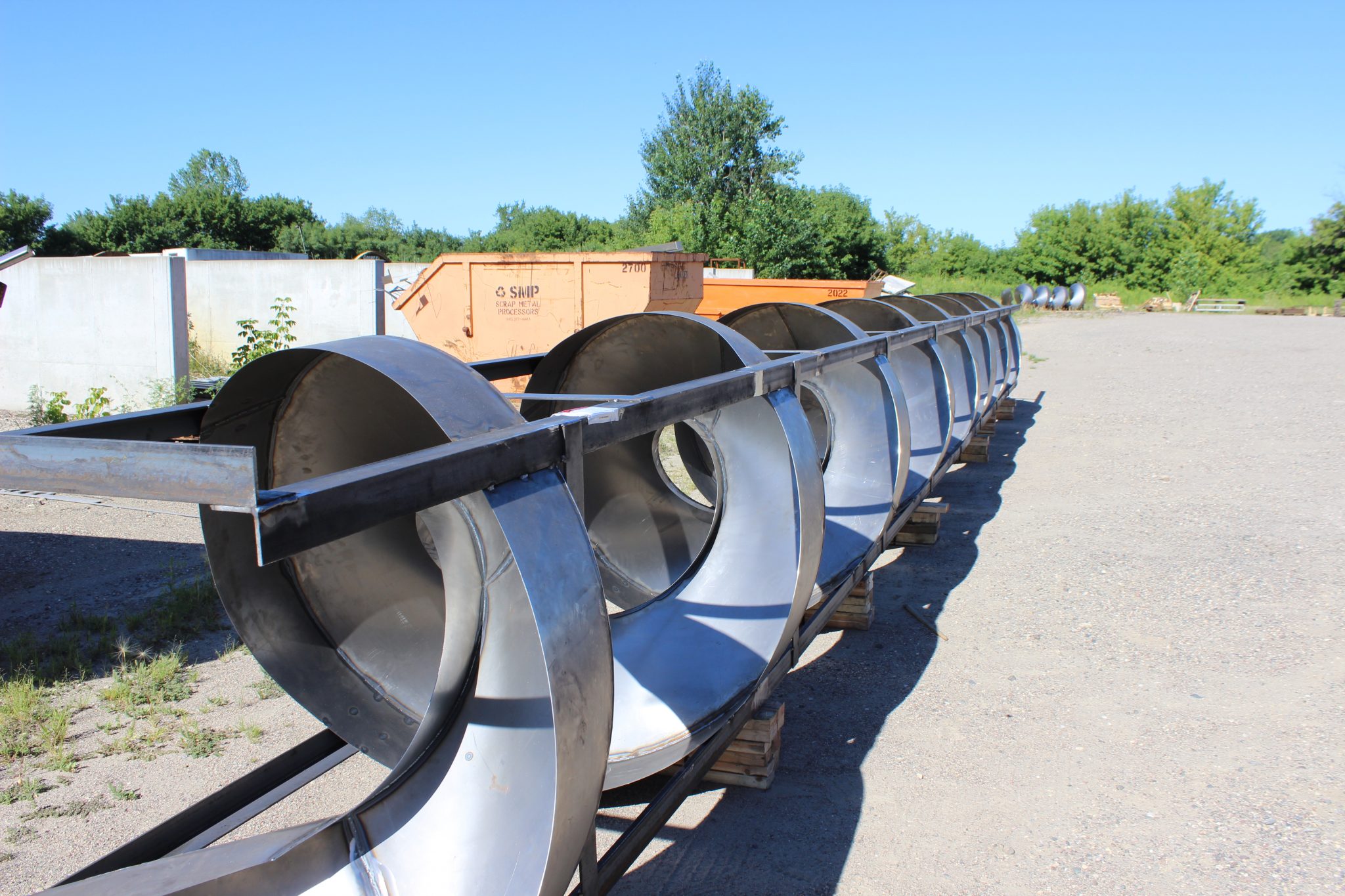

Our experience includes tall industrial chutes, stainless steel food-processing chutes, material piling systems, and custom gravity-driven material handling applications.
If you’re looking for a spiral chute for bin loading, a material piling chute, or a custom metal chute for material handling, contact Astro Metal Craft to discuss your application and requirements.
